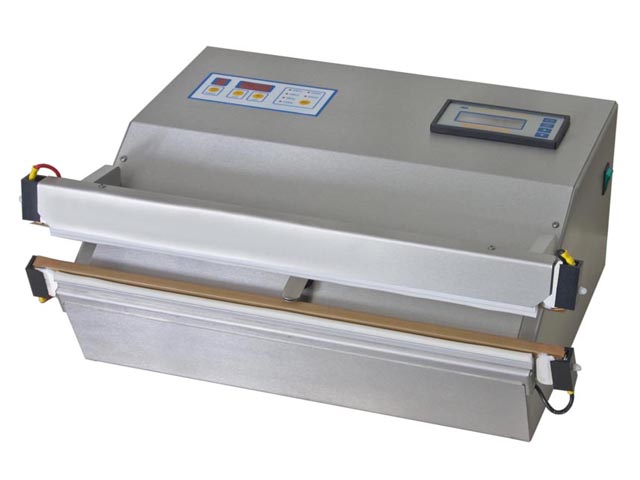

Powerful film sealing units which can be calibrated with air exhaustion and gas flushing available with sealing lengths of 520, 720 and 1020mm.
With temperature control and monitoring function for a validated sealing process according to DIN 58953 part 7 and guideline DGSV®.
Add to Wishlist Universally suitable for a variety of bag materials. Especially for sterile packaging and peel bags according to ISO 11607 (paper/film, Tyvek®/film …), but also for bags made of polyethylene or composite materials, e.g. PA/PE, PET/Alu/PE …
| Sealing weld | 520 x 8mm 720 x 8mm 1020 x 8mm |
| Sealing temperature | digitally adjustable up to 240°C |
| Sealing time | digitally adjustable |
| Cooling temperature | digitally adjustable |
| Closing force | monitored |
| Exhaustion time | adjustable |
| Gasing time | adjustable |
| Sealing system | double-sided impulse heating |
| Pack or bag size | 500mm, 700mm, 1000mm |
| Conformity | EN ISO 11607, DIN 58953-7 |
All data are approximate only.

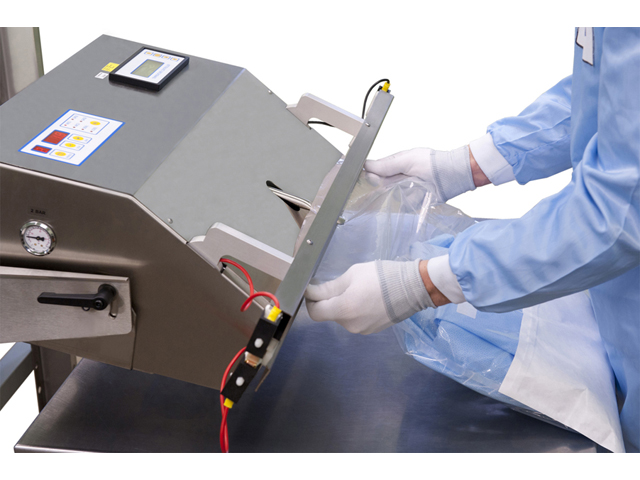

The film sealing devices MVmedplus have been designed for particularly sensitive applications in the medical and pharmaceutical sectors. They are used for packaging implants, cathodes, tubes, surgical materials, but also in the food industry and for packaging chemical products.
