Automatic side sealing machine CS-Matic 100

CS-Matic 100 side sealing machine in combination with infeed conveyor belt and TE-Matic shrink tunnel

Touch panel CS-Matic 100 side sealing machine

CS-Matic 100 side sealing machine inside

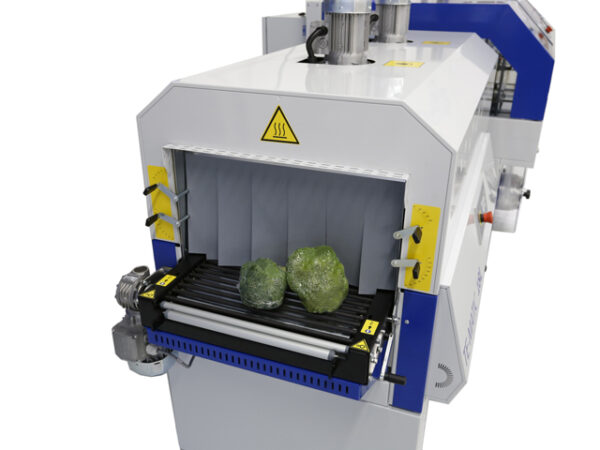

CS-Matic 100 side sealing machine - Sample packaging broccoli

Powerful and fully automatic side sealing machine for convenient packaging of single or multi-piece packs. The CS-Matic 100 side sealing machine can be ideally combined with the shrink tunnels from the TE-Matic range to produce shrink packs.

Kategorie: Shrinkwrapping machines

Add to Wishlist

Enquire now

For recyclable shrinking film semi-tubular, for example KOPP-polyshrinkfilm

Seperately adjustable sealing temperature for cross and side sealing unit
Intermittend cross sealing system
Electronically adjustable conveyor speed
Modern 7-inch touch panel
50 programs can be saved
Product synchronization via photocells
Remaining film rewind

Sealing	Cut sealing
Sealing temperature	for both sealing systems seperately adjustable
Sealing time	adjustable
Sealing system	one-sided permanent heating
Film thickness	max. 2 x 30µm
Film roll width	max. 600mm
Product width	max. 400mm
Product heigth	max. 200mm

All data are approximate only.

Ideal for combining with the shrink tunnels from the TE-Matic series to create an automatic shrink packaging system for the automated shrink packaging of single packs or multi-piece packs. For example in the following markets: Bakery, confectionery, dairy products, fruit and vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceuticals, electrics/electronics, plastic, wood, paper, cleaning agents, mechanical industry, lubricants, crates and cartons, logistics and many more.
