Film sealing unit MVMedPlus with air extraction

These powerful film sealing units can be calibrated and are provided with air extraction, gas flushing and extremely strong closure of bars, available with sealing lengths of 520, 720 and 1020mm.

The Power Sealer Plus series has been designed based on customer-related requirements. Equipment and software answer to demanding markets where validated sealing processes according to DIN 58953 part 7 and to the guideline DGSV® are required.

Kategorie: Impulse sealer, Manually closing, Vacuum packaging, vacuum/air suction, Validated process
Add to Wishlist Add to Wishlist
Add to Wishlist

Universally suitable for a variety of bag materials. Especially for sterile packaging and peel bags according to ISO 11607 (paper/film, Tyvek®/film …), but also for bags made of polyethylene or composite materials, e.g. PA/PE, PET/Alu/PE …

  • Control function for validation of sealing
  • Comfortable, modern operation and parameter control at the touch panel
  • Display of desired and actual value of sealing temperature, sealing time and alarm function with error list for the three process parameters
  • Display of closing force
  • Recipe management
  • Password protected access level
  • LOG file on internal memory (output via USB)
  • Double-sided impulse heating
Sealing weld 520 x 8mm
720 x 8mm
1020 x 8mm
Sealing temperature digitally adjustable up to 240°C
Sealing time digitally adjustable
Cooling temperature digitally adjustable
Closing force monitored
Exhaustion time adjustable
Gasing time adjustable
Sealing system double-sided impulse heating
Pack or bag size 500mm, 700mm, 1000mm
Conformity EN ISO 11607, DIN 58953-7

All data are approximate only.

Trolley with electric adjustment of height
Trolley with electric adjustment of height
Trolley with two castors (can be fixed) and motor driven height adjustment, pivoting fixing device
Moveable trolley with 2 castors (2 swivel castors, lockable). Height-adjustable and swiveling equipment mount via hand crank.
Bag support
Bag support
Bag support for trolley for closing of larger bags
Snap-in table
Snap-in table
Snap- in table in addition to the trolley for smaller bags

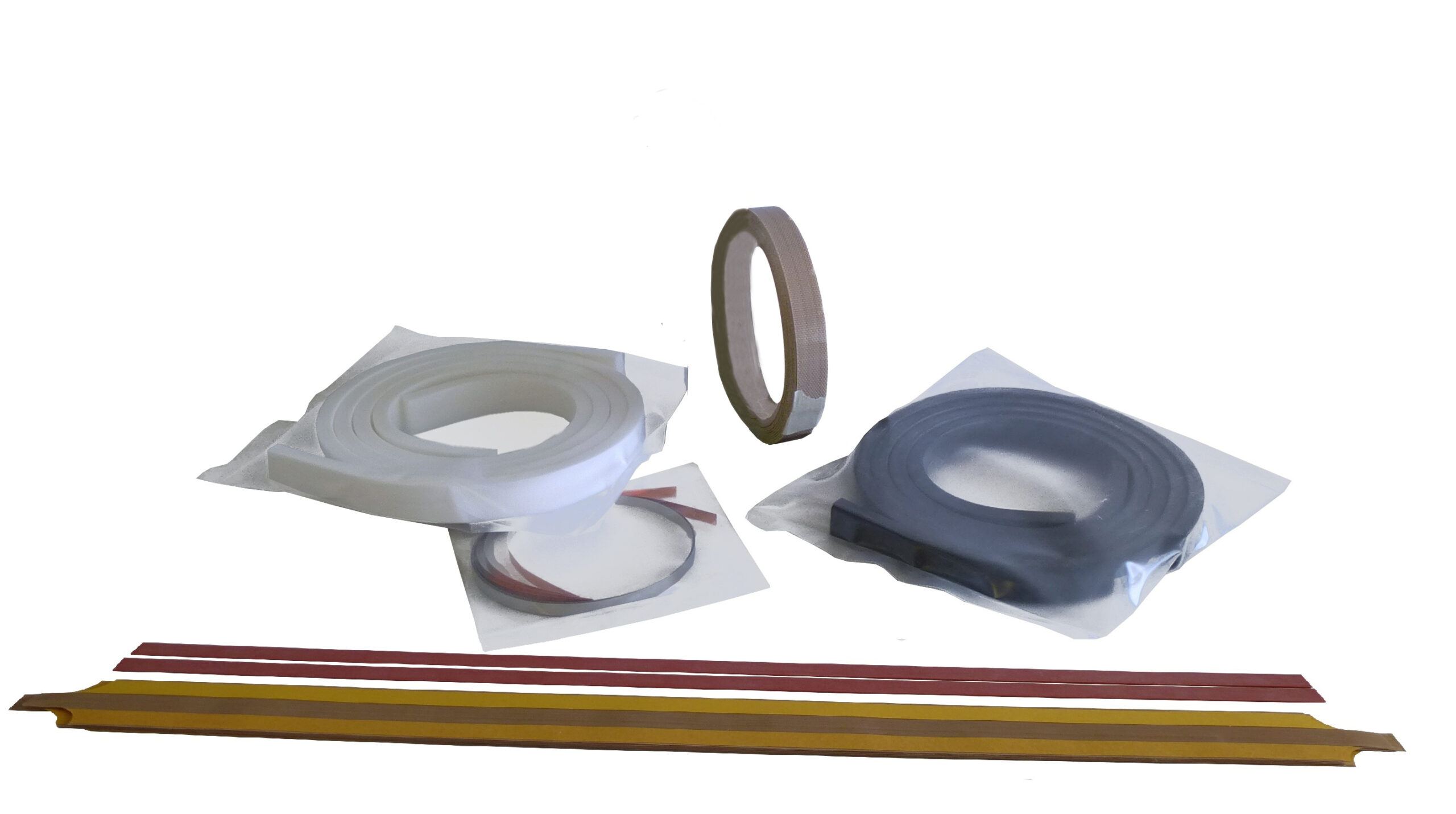

Spare parts set
Spare parts set
Set with the most important wearing parts for storage.
Trolley with electric adjustment of height

The film sealing devices MVmedplus have been designed for particularly sensitive applications in the medical and pharmaceutical sectors. They are used for packaging implants, cathodes, tubes, surgical materials, but also in the food industry and for packaging chemical products.
