Film sealing unit MV with air extraction

Folienschweißgerät Luftabsaugung Anwendung

Home
/
Impulse sealer
/
Film sealing unit MV with air extraction

Very powerful film sealing units with air exhaustion available with sealing lengths of 520, 720 and 1020mm with pneumatic closing of sealing bars and digital time control. The versions MVMed and MVMedPlus are provided with a digital temperature control for validation of sealing process and low wearing. When exhaustion of air is not required, please opt for the models IST and ISTMed.

Show More Show Less

Kategorie: Impulse sealer, Manually closing, Vacuum packaging

Add to Wishlist

Enquire now

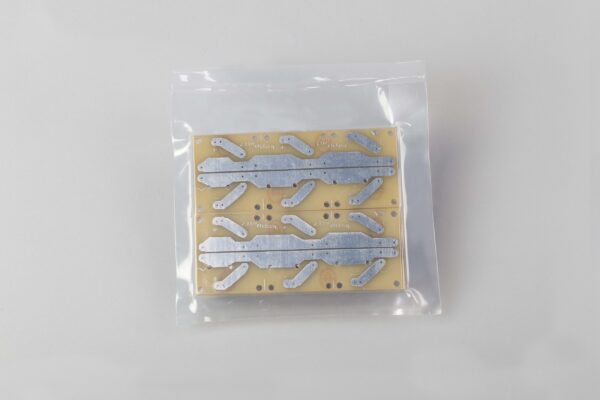

For bags and sacks with barrier, convenient materials for vacuum packages are for example PA/PE, PA/PP as well as thin qualities of aluminium foil such as PET/Alu/PE or other heat sealable and sealable materials.

Easy to handle film sealing unit
Double-sided impulse heating
Digital temperature- and time control

Sealing weld	520mm x 5mm 720mm x 5mm 1020mm x 5mm
Sealing time	adjustable
Cooling time	adjustable
Exhaustion time	adjustable
Gasing time	adjustable
Program memory	9 programs
Sealing system	Double-sided impulse heating
Pack or bag size	500mm, 700mm, 1000mm

All data are approximate only.

Trolley

Moveable trolley with 2 castors (2 swivel castors, lockable). Height-adjustable and swiveling equipment mount via hand crank.

Bag support

Bag support for trolley for closing of larger bags

Snap-in table

Snap-in table in addition to the trolley for smaller bags

Spare parts set

Set with the most important wearing parts for storage.

The Power Sealers MV are particulary powerful, broadly applicable, sturdy film sealing units with air exhaustion. The air exhaustion reduces the storage volume for example during packaging of bedding, pillows, foamed plastic, textiles….

These film sealing machines are also used for personal protective equipment or supplies by rescue forces such as the German Red Cross, the fire brigade, the THW (German Federal Agency for Technical Relief) or other organisations in civil protection and disaster control.
