Heat sealer / Impulse sealer
/

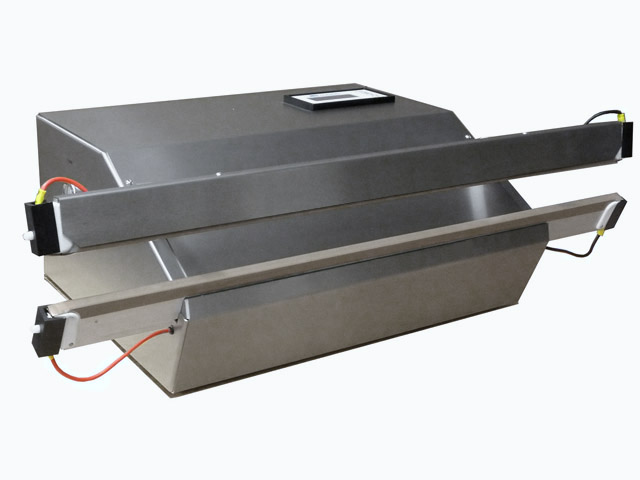

Film sealing unit ISTMed

Powerful sealing units with pneumatic closing and digital time control available with sealing lengths of 520, 720 and 1020mm.
With temperature control and monitoring function for a validated sealing process according to DIN 58953 part 7 and guideline DGSV®.

Show More Show Less

Kategorie: Heat sealer / Impulse sealer, Impulse sealer, Manually closing, Validated process

Add to Wishlist

Enquire now

Universally suitable for a variety of bag materials. Especially for sterile packaging and peel bags according to ISO 11607 (paper/film, Tyvek®/film …), but also for bags made of polyethylene or composite materials, e.g. PA/PE, PET/Alu/PE …

Control function for validation of sealing weld
Easy to handle film sealing unit
Double-sided impulse heating

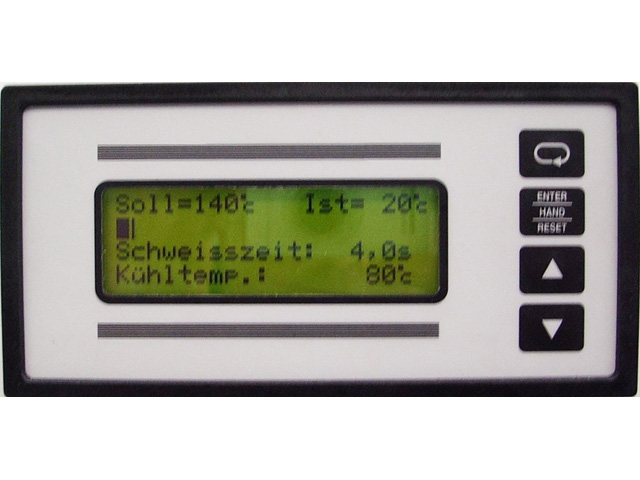

Display of desired and actual value of sealing temperature, sealing time and closing force

Welding seam	520 x 8mm, 720 x 8mm, 1020 x 8mm
Sealing temperature	digitally adjustable up to 240°C
Sealing time	digitally adjustable
Cooling temperature	digitally adjustable
Closing force	monitored
Sealing system	Double-sided impulse heating
Pack or bag size	500mm, 700mm, 1000mm
Conformity	EN ISO 11607, DIN 58953-7

All data are approximate only.

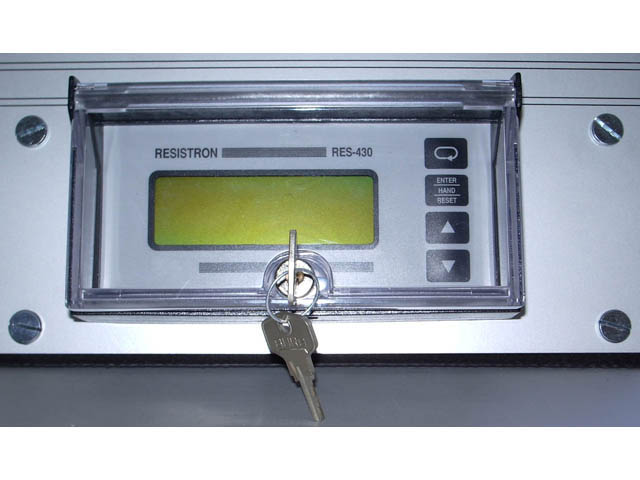

Locking Welding parameters

Plastic cover, lockable to prevent changing the welding parameters

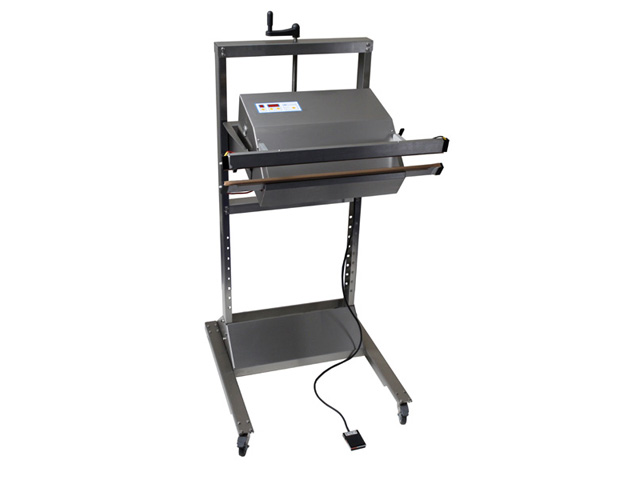

Trolley

Moveable trolley with 2 castors (2 swivel castors, lockable). Height-adjustable and swiveling equipment mount via hand crank.

Bag support

Bag support for trolley for closing of larger bags

Snap-in table

Snap-in table in addition to the trolley for smaller bags

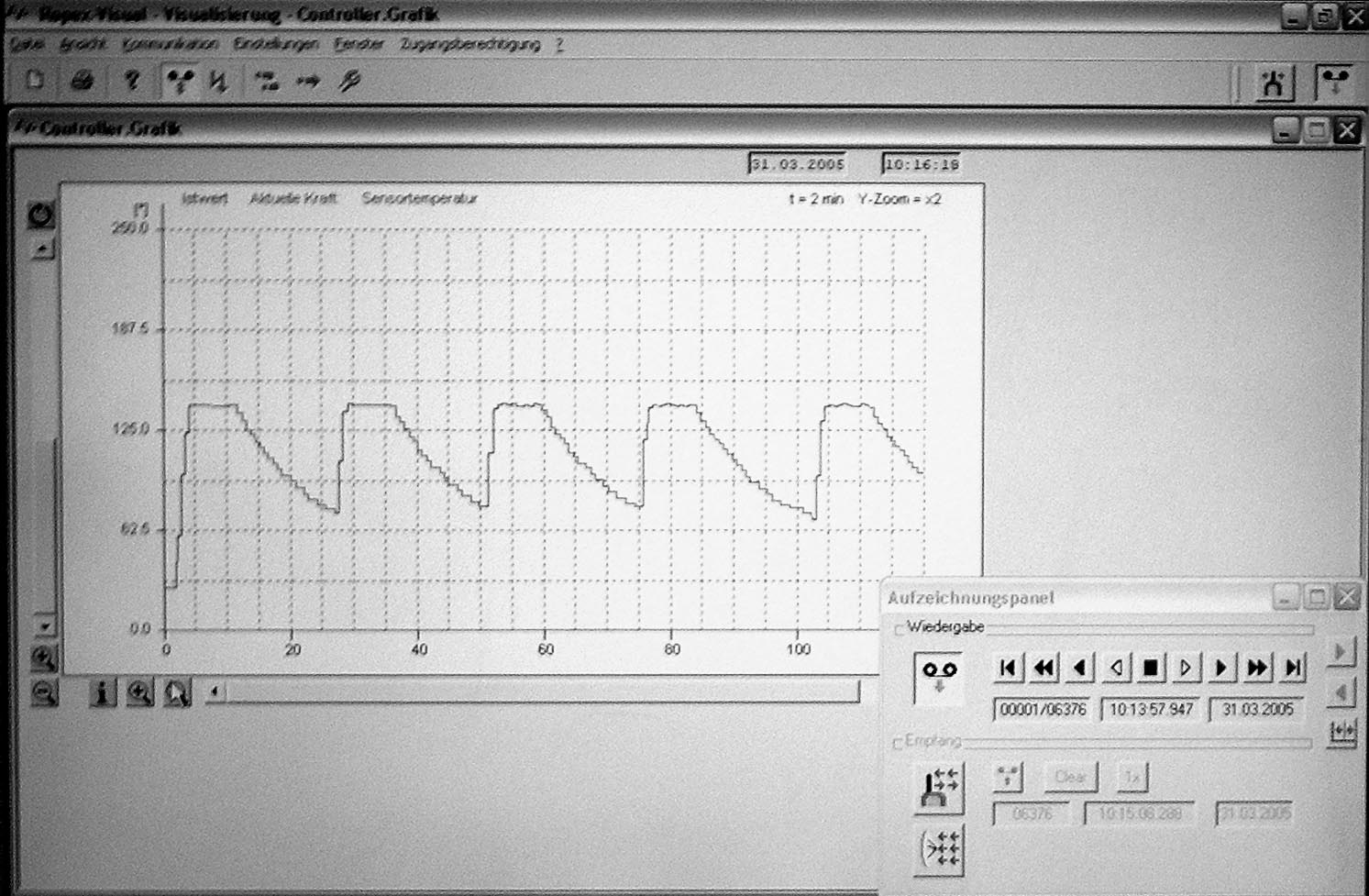

USB interface

Interface with software for reading out the validation data

Spare parts set

Set with the most important wearing parts for storage.

The Power Sealer devices IST Med are film sealing units originally designed for production of sterilized packages. In the meantime, these devices are used in all industrial sectors where constantly high quality of sealing welds are necessary and maximum reliability is anticipated.
Food or food additive packaging, electronics packaging …
When exhaustion of air is required, please opt for the models MV and MVMed.
